LH001GZ

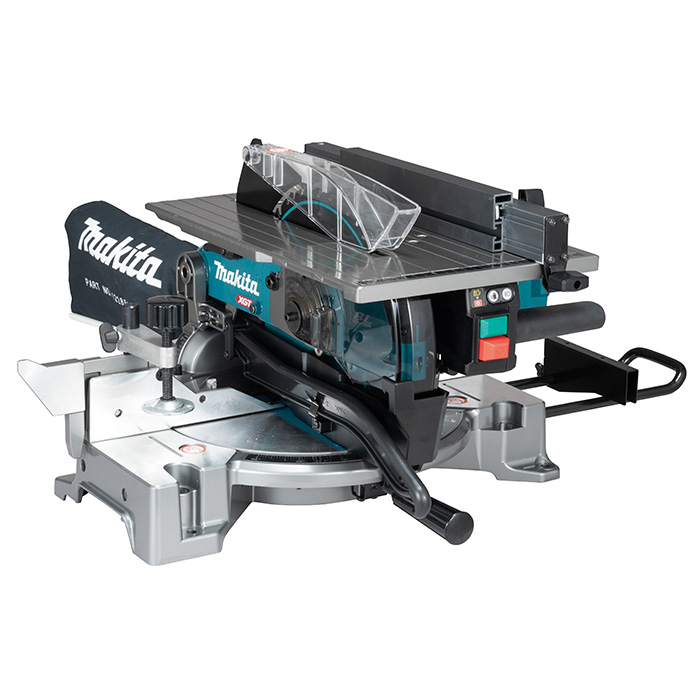

Cordless Table Top Miter Saw

Content: BARE TOOL

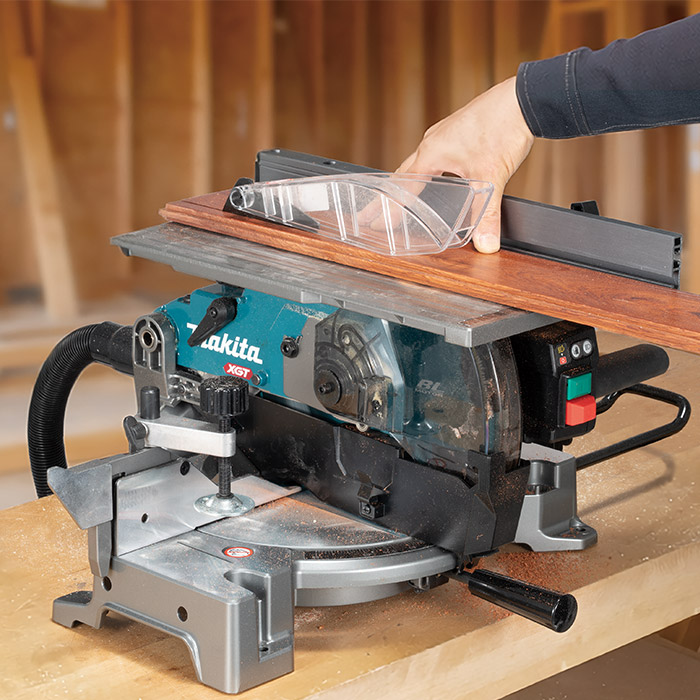

Miter saw and Table saw in one tool with cordless convenience. BL brushless motor and XGT battery deliver power and efficiency exceeding corded models. Rack-and-pinion mechanism allows easy fine adjustment of table height by turning the knob. Blade cover used in both miter saw and table saw modes with push stick storage on the side. Rip fence secured at both ends minimizes bending to enhance cutting accuracy in table saw mode. Redesigned airflow path minimizes dust ejection and enhances dust collection efficiency. LED job light casts blade shadow on workpiece for exact cut line alignment. AWS connectivity with dedicated vacuum switch for easy post-work cleanup.

Technologies

AUTO-START WIRELESS SYSTEM
BRUSHLESS DC MOTOR
EXTREME GENERATION TECHNOLOGY

Learn More About:

Wheel diameter
255 mm (10"), 260 mm (10-1/4").
No load speed
4,300 min-1.
Miter saw / Bevel range
0° - Left: 45°.
Miter saw / Miter range
Left: 45° / Right: 52°.
Miter saw / Cutting capacity
Bevel 0° / Miter 0°: 69 x 130 mm (2-3/4 x 5-1/8"), 93 x 95 mm (3-5/8 x 3-3/4") | Bevel 0° / Miter 45°LR: 69 x 85 mm (2-3/4 x 3-3/8"), 93 x 67 mm (3-5/8 x 2-5/8").
Table saw, Max cutting capacity
40 mm (1-9/16").
Table saw, Table size
260 x 415 mm (10-1/4 x 16-3/8").
Dimensions (L x W x H) (Battery)
545 x 476 x 585 mm (21-1/2 x 18-3/4 x 23") (BL4040).
Net weight (Battery)
14.8 - 16.0 kg (32.6 - 35.3 lbs.) (BL4020 - BL4080F).
anti-restart function
anti-restart function
bevel cutting 45 lr
bevel cutting 45 lr
brake
brake
built-in job light
built-in job light
constant speed
constant speed
dust collection
dust collection
laser marker
laser marker
soft start
soft start
Especificaciones
Wheel diameter
255 mm (10"), 260 mm (10-1/4").
No load speed
4,300 min-1.
Miter saw / Bevel range
0° - Left: 45°.
Miter saw / Miter range
Left: 45° / Right: 52°.
Miter saw / Cutting capacity
Bevel 0° / Miter 0°: 69 x 130 mm (2-3/4 x 5-1/8"), 93 x 95 mm (3-5/8 x 3-3/4") | Bevel 0° / Miter 45°LR: 69 x 85 mm (2-3/4 x 3-3/8"), 93 x 67 mm (3-5/8 x 2-5/8").
Table saw, Max cutting capacity
40 mm (1-9/16").
Table saw, Table size
260 x 415 mm (10-1/4 x 16-3/8").
Dimensions (L x W x H) (Battery)
545 x 476 x 585 mm (21-1/2 x 18-3/4 x 23") (BL4040).
Net weight (Battery)
14.8 - 16.0 kg (32.6 - 35.3 lbs.) (BL4020 - BL4080F).
Características
anti-restart function
anti-restart function
bevel cutting 45 lr
bevel cutting 45 lr
brake
brake
built-in job light
built-in job light
constant speed
constant speed
dust collection
dust collection
laser marker
laser marker
soft start
soft start
Aplicaciones

Makita reserves the right to change the specifications of parts and accessories without prior notice. The standard equipment items, specifications, and photographs may vary. Accessories may not be included with the tool by default, even if identified on this page.
