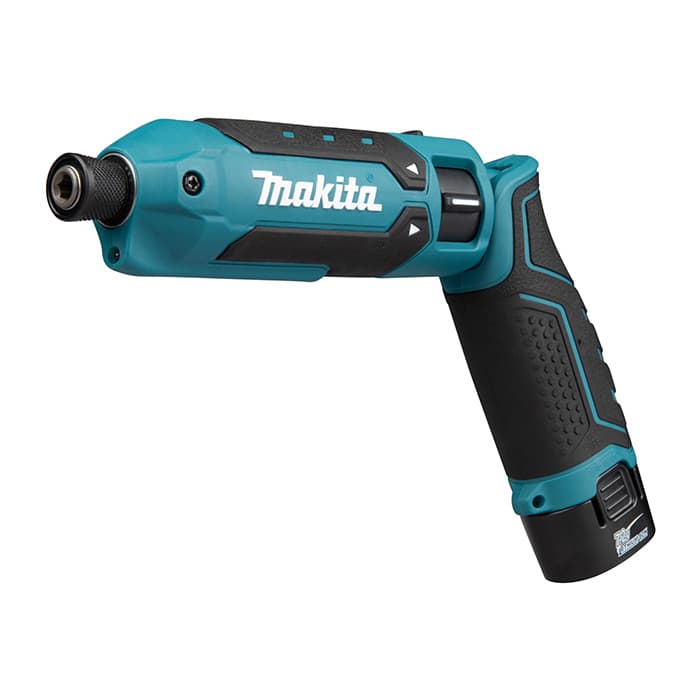

TD023D

Cordless Impact Driver

Content: BARE TOOL

Evolving to be even easier to use with a compact overall length of 229 / 285 mm. Max fastening torque 25 Nm. High no load speed 0-2.450 min-1. Lightweight at 0.58kg with battery BL0715. Easy-to-grip tapered bit sleeve. Designed for easy and quick bit removal. Multi-functional rotary type switch. Easy to turn on/off, adjust rotational speed and reverse rotation. The bit can be locked in place with a simple push-in motion without pulling back the bit sleeve. LED job light with preglow function. Can also be used as a hand screwdriver.

Learn More About:

Max fastening torque :
25 Nm (220 in.lbs.).
No load speed :
0 - 2,450 min-1.
Impacts per minute :
0 - 3,000 min-1.
Vibration level :
6.2 m/s² (EN62841-2-2).
Dimensions pistol style (L x W x H) (Battery) :
229 x 42 x 142 mm (9 x 1-5/8 x 5-5/8
Dimensions straight style (L x W x H) (Battery) :
285 x 42 x 52 mm (11-1/4 x 1-5/8 x 2-1/16
Net weight (Battery) :
0.58 kg (1.3 lbs.) (BL0715).
brake
brake
built-in job light
built-in job light
carrying case
carrying case
reversing
reversing
variable speed
variable speed
Especificaciones
Max fastening torque :
25 Nm (220 in.lbs.).
No load speed :
0 - 2,450 min-1.
Impacts per minute :
0 - 3,000 min-1.
Vibration level :
6.2 m/s² (EN62841-2-2).
Dimensions pistol style (L x W x H) (Battery) :
229 x 42 x 142 mm (9 x 1-5/8 x 5-5/8
Dimensions straight style (L x W x H) (Battery) :
285 x 42 x 52 mm (11-1/4 x 1-5/8 x 2-1/16
Net weight (Battery) :
0.58 kg (1.3 lbs.) (BL0715).
Características
brake
brake
built-in job light
built-in job light
carrying case
carrying case
reversing
reversing
variable speed
variable speed
Aplicaciones

Makita reserves the right to change the specifications of parts and accessories without prior notice. The standard equipment items, specifications, and photographs may vary. Accessories may not be included with the tool by default, even if identified on this page.
